Lifepo4 Battery Pack 48V
Share to：

Lifepo4 Battery Pack 48V

Model No.： RS-LFP48V100AH
Voltage： 48V
Weight： 24kgs
Warranty： 10years
Battery Size： 680*495*185
Color： Grey, Black , Red ,Green,White etc
Brand Name： Rosen or OEM
Application： Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Certification： CE/ROSH/MSDS/UN38.3/IEC/ISO9001/ISO14001
 Send a Message
Detail

Product Overview


Technical Specification


Type
Module

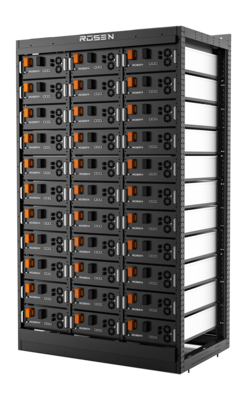

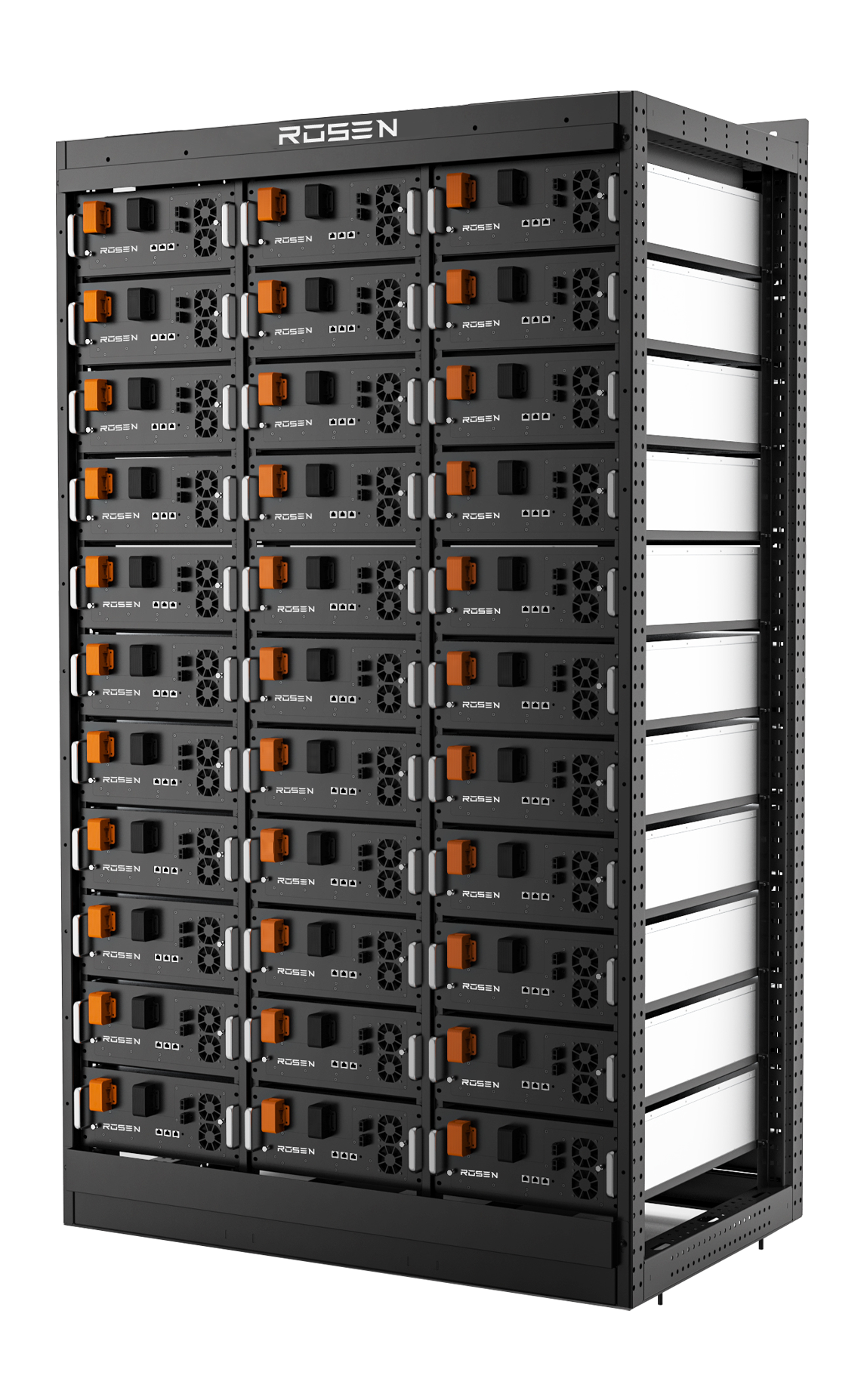

Powerwall
Model
RS-LFP4850
RS-LFP48100
RS-LFP48150
RS-LFP48200
Battery Capacity [Ah]
50Ah
100Ah
150Ah
200Ah
Nominal Battery Energy [kwh]
2.4
4.8
7.2
9.6
Peak Output Current [Amp]
50
100
150
200
Net Weight
35
68
95
108
Dimension [H*W*D, mm]
442*480*88
680*495*185
680*495*185
680*495*185
Operating Temperature Range
-20 ~ 50 [℃ ]
Life Cycles
>6000
Nominal Voltage [V]
48V
Communication
CAN/RS485/DRY CONTACT
Certificate & Safety Standard
TUV / CE / EN62619 / IEC62040 / UN38.3
Warranty
10 Years
Alarms
Battery Operation/Out of Battery/System fault
Application
Applied in off-grid and hybrid systems, Compact Design, Modular Expansion
Monitoring & Protection
With BMS protection in each Module, and breaker embedded in the system

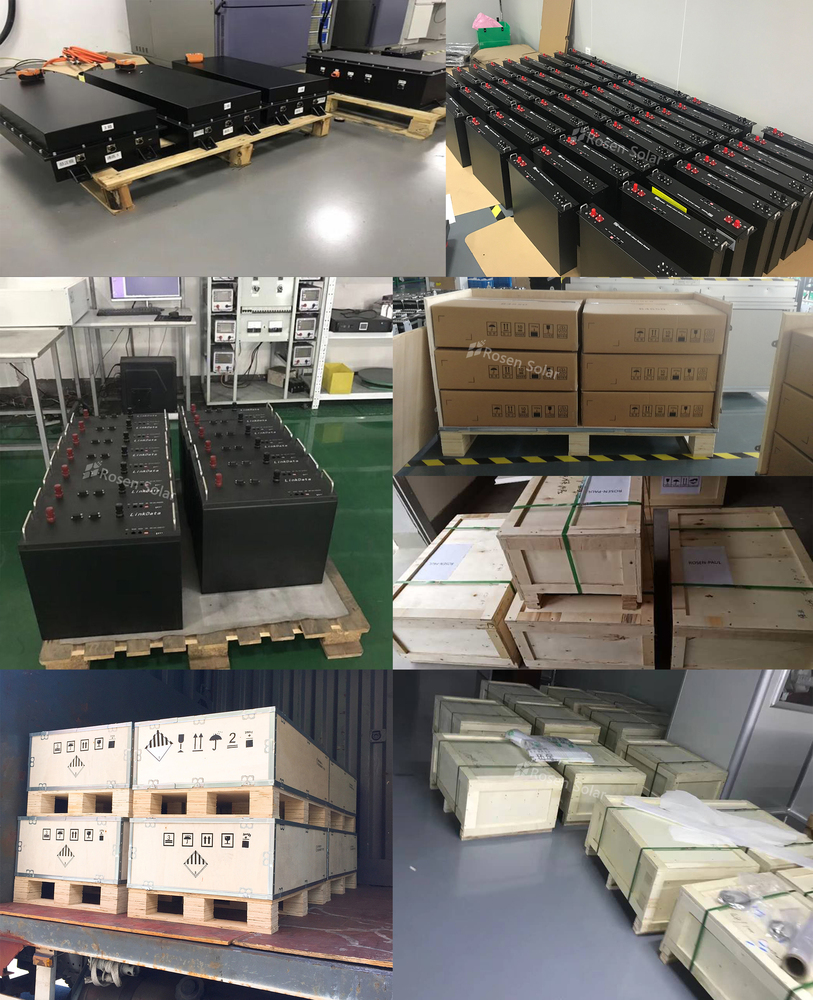

Package & Delivery

lithium module.jpg

lithium module Packaging.jpg

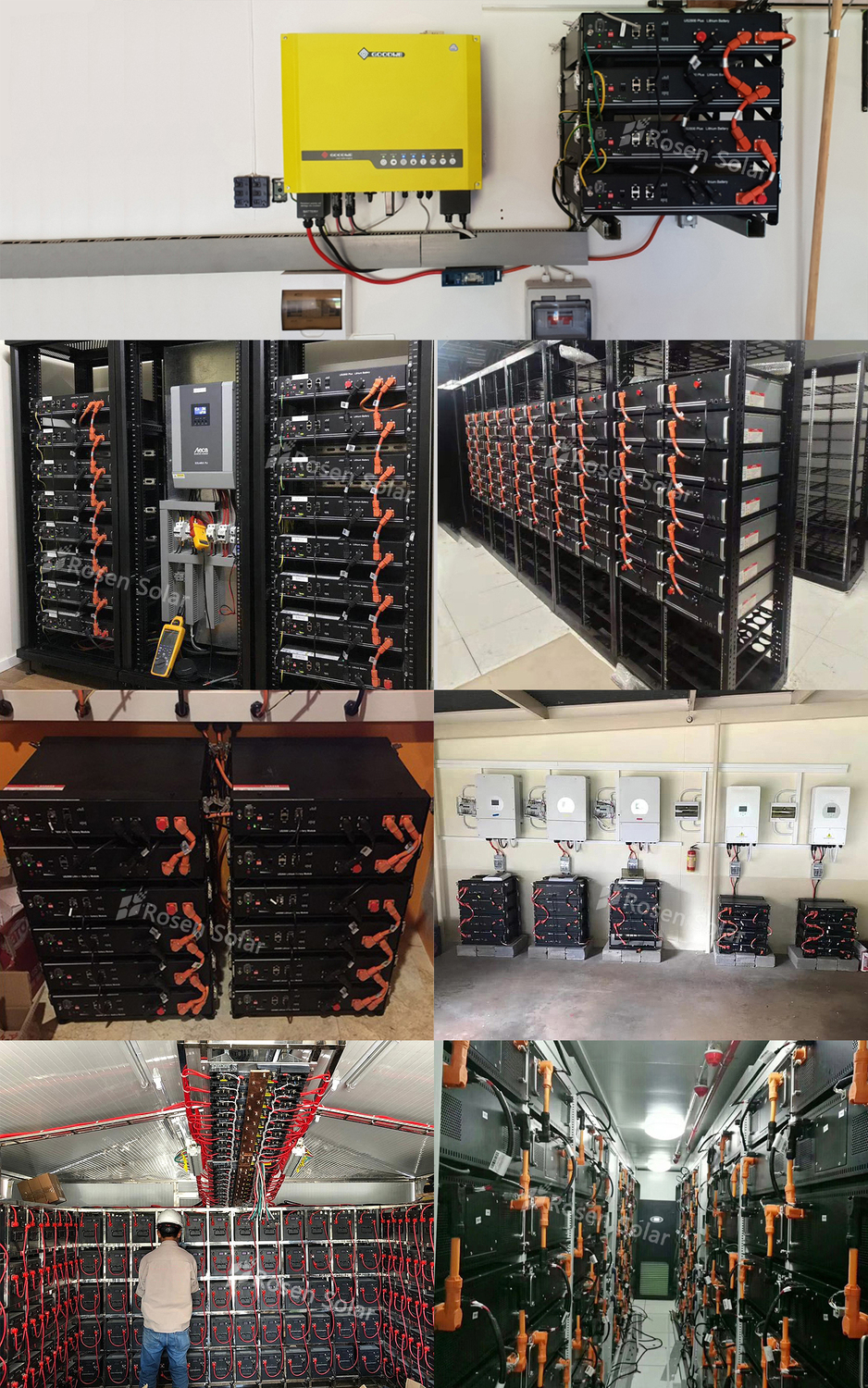

Battery Application


solar battery.jpg
