2V 3000Ah Gel Battery
Model No.: RSG2-3000
Rechargeable: Chargeable
Dimension: 712*353*343/369mm
Weight: 181kgs
Warranty: 5 Years
Maintenance: Free
Terminal: Lead/Copper
Negative Plate: Negative Plate
Trademark: Rosen Solar/OEM/ODM
Design Life: 20 Years (Floating Charge)
Sealed Type: Sealed Valve Regulated
Positive Plate: Lead Dioxide
Material: High Pure Lead
Transport Package: Wooden Box/Carton Packing
Container Cover: ABS
Color: Gray/Black/Red
Application: 8507200000
Electrolyte: Fixed
Certification: Rubber
Battery portection: UL/Ce/RoHS/ISO09001/ISO14001/IEC60896/IEC61427
Detail


Rosen Solar GEL series are valve regulated lead-acid cells which use a combination of tubular positive plate woven gauntlets, pasted negative plate design and GEL electrolyte using advanced filling techniques in production which assure superior service life and excellent battery reliability. The battery has excellent cyclic performance and charge acceptance ability. It can be used in high-low temperature environment and poor grid condition.

Narada Quality Gel Battery 2V 3000ah for Power Storage, GEL2-3000
ROSEN BATTERY TAGS:

♦ Lithium-ion Battery, LiFePO4 Battery; Lithium Battery, Rechargeable Battery Pack,
♦ 19inch Battery Pack, Lithium Battery Pack, Lithium Iron Phosphate Battery, Lithium Battery Bank,

♦ 2V Battery, Long Life Battery, Battery Pack, 12V Solar Battery, Battery for 48V   System, 6V Solar Battery,
♦ Gel Battery, AGM Battery, Batteries lead acid, SLA Battery, Free Maintenance Battery, Sealed Battery, Deep Cycle Battery,
♦ Solar Power battery,VRLA Battery,rechargeable battery, Long life battery, Solar Gel Battery,

♦ Storage Battery, Solar Panel Battery, Inverter Battery, Solar Charger Controller Battery, UPS Battery,
♦ Marine battery, Car Battery, Electrical battery, Telecom Battery, Solar back-up battery, Terminal battery,
♦ Front Access Battery, Battery Pack, Solar Batteries, 12v Battery,

♦ OPzV Battery, Gel Battery, 2V Tubular Battery, Long Life Gel Battery,
♦ OPzV Tubular Plates Battery, Power Storage Battery, UPS OPzV Battery, Solar Panel Gel Battery.

2V-3000ah.jpg2V 3000AHA.jpg

Key Features:
♦Long service life according to EUROBAT Classification
♦Up to 2200 deep discharge cycles
♦High gas recombination efficiency
♦Wide suitability of ambient temperature range
♦Low self discharge


Applications:
♦Solar and wind energy storage system
♦EPS and UPS battery backup
♦Signal system , emergency lighting system , security system
♦Telecommunication Equipment
♦Power plant and transmission system


Complied standards
♦ IEC 60896-21/22
♦ DIN40742
♦ IEC61427
♦ YD/T1360
♦ EUROBAT guide, long life BS6290 part 4

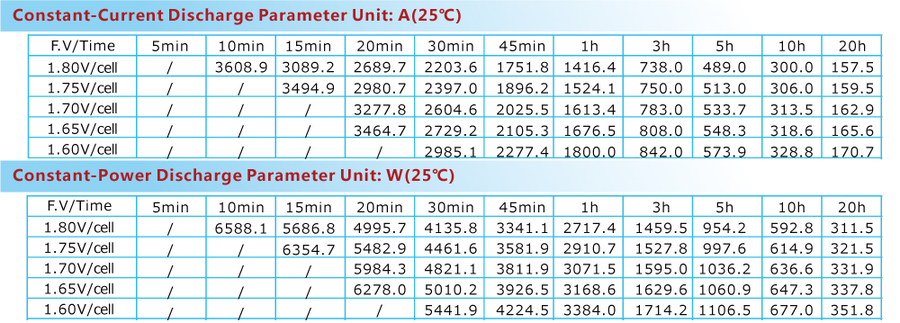

2V Series Technical Data
1, Function Parameter
5, Environment Temperature
Norminal Voltage
2V
Discharge Temperature
-20-50ºC
Norminal Capacity(10 hours rate)
3000Ah
Charge Temperature
-10-50ºC
Numbers of Cells
1cell
Storage Temperature
-20-60ºC
2, Rated Capacity at 25ºC(77ºF)
6, Inner Resistance & Max. Discharge Current
10 hour rate(0.1C, 1.80V/cell)
3000Ah
Fully Charge Battery at 25ºC(77ºF)
0.15mΩ
3 hour rate(0.25C, 1.75V/cell)
2214Ah
Max. Discharge Current
3000A(5s)
1 hour rate(0.55C, 1.60V/cell)
1524Ah
Short Circuit Current
9000A
3, Capacity affected by Temperature(10 hour rate)
7, Self-discharge@25ºC(77ºF)
40ºC(104ºF)
102%
Capacity after 3 Month Storage
92%
25ºC(77ºF)
100%
Capacity after 6 Month Storage
84%
0ºC(32ºF)
90%
Capacity after 9 Month Storage
74%
-15ºC(5ºF)
70%
Capacity after 12 Month Storage
65%
4, Constant Voltage Charging at 25ºC(77ºF)
8, Dimension & Weight
Cycle Charge
2.35-2.4V
Length
712mm
Maximum Charging Current
750A
Width
353mm
Temperature Compensation
-5mV/ºC
Height
343mm
Float Charge
2.23-2.27V
Total Height
369mm
Temperature Compensation
-3.3mV/ºC
Reference Weight
181kgs

2V3000AH.jpg2V BATTERY 曲线图.jpg

♦ Our battery factory Founded in 2008 , 2million batteries annual production capacity
♦ Products including valve regulated lead acid battery, Gel battery, deep cycle battery, OPzV and OPzS battery
♦ Products are exported to more than 100countries
♦ Products are certified by CE, UL,Rohs
♦ Mature and very well respected AGM and GEL technologies for valve-regulated lead-acid batteries ranging from 2Ah to 3000Ah


GEL Battery Contruction

A. Electrolyte: Be immobilized in the cell through the use of a gelling agent or absorbed in the separators and plates.The cells shall have no residual free or bulk liquid electrolyte.
B. Separators: Made of fiberglass. Be porous to electrolyte but electrically insulating.
C. Container & Cover: Cell containers and covers shall be made of a high impact, flame-retardant plastic

D. Terminal: Terminal posts shall be cast in lead or lead alloy and have a copper core insert.
E. Valve: The valve operate at the pressure limits specified. The valve will not allow ingress of outside air into the unit.

ElementElectrolytePositive PlateNegative PlateContainer
MaterialColloidal siliconLead dioxideLead ABS
ElementCover               Safety valve   Terminal/WireSeparator
MaterialABSRubberCopperFiberglass
