OPzV 2500Ah Battery
Model No.: OPZV2-2500
Rechargeable: Chargeable
Dimension: 487*212*772/807mm
Weight: 185kgs
Warranty: 3 Years
Maintenance: Free
Terminal: Lead/Copper
Negative Plate: Negative Plate
Trademark: Rosen Solar/OEM/ODM
Design Life: 20 Years (Floating Charge)
Sealed Type: Sealed Valve Regulated
Positive Plate: Lead Dioxide
Material: High Pure Lead
Transport Package: Wooden Box/Carton Packing
Container Cover: ABS
Color: Gray/Black/Red
Application: 8507200000
Electrolyte: Fixed
Certification: Rubber
Battery portection: UL/Ce/RoHS/ISO09001/ISO14001/IEC60896/IEC61427
Detail

Rosen Solar OPzV series are valve regulated lead-acid cells which use a combination of tubular positive plate woven gauntlets, pasted negative plate design and GEL electrolyte using advanced filling techniques in production which assure superior service life and excellent battery reliability. The battery has excellent cyclic performance and charge acceptance ability. It can be used in high-low temperature environment and poor grid condition.

Narada Quality Tubular OPzV Gel Battery 2V 2500Ah for Power Storage, OPzV2-2500
ROSEN BATTERY TAGS:

♦ Lithium-ion Battery, LiFePO4 Battery; Lithium Battery, Rechargeable Battery Pack,
♦ 19inch Battery Pack, Lithium Battery Pack, Lithium Iron Phosphate Battery, Lithium Battery Bank,

♦ 2V Battery, Long Life Battery, Battery Pack, 12V Solar Battery, Battery for 48V   System, 6V Solar Battery,
♦ Gel Battery, AGM Battery, Batteries lead acid, SLA Battery, Free Maintenance Battery, Sealed Battery, Deep Cycle Battery,
♦ Solar Power battery,VRLA Battery,rechargeable battery, Long life battery, Solar Gel Battery,

♦ Storage Battery, Solar Panel Battery, Inverter Battery, Solar Charger Controller Battery, UPS Battery,
♦ Marine battery, Car Battery, Electrical battery, Telecom Battery, Solar back-up battery, Terminal battery,
♦ Front Access Battery, Battery Pack, Solar Batteries, 12v Battery,

♦ OPzV Battery, Gel Battery, 2V Tubular Battery, Long Life Gel Battery,
♦ OPzV Tubular Plates Battery, Power Storage Battery, UPS OPzV Battery, Solar Panel Gel Battery.

OPZV-2V-2500AH.jpgOPZV 2V 2500AH.jpg

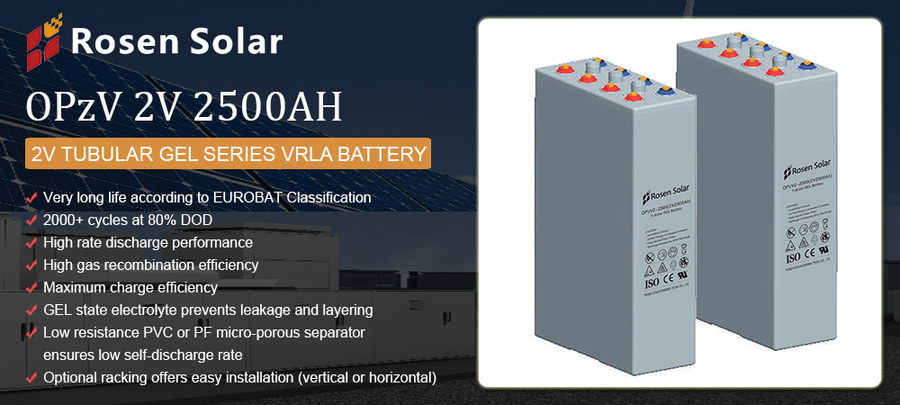

Key Features :
♦Very long life according to EUROBAT Classification
♦2000+ cycles at 80% DOD
♦High rate discharge performance
♦High gas recombination efficiency
♦Maximum charge efficiency
♦GEL state electrolyte prevents leakage and layering
♦Low resistance PVC or PF micro-porous separator ensures low self-discharge rate
♦Optional racking offers easy installation (vertical or horizontal)


Applications :
♦Solar and wind energy storage system
♦EPS and UPS battery backup
♦Signal system , emergency lighting system , security system
♦Telecommunication Equipment
♦Power plant and transmission system


Complied standards
♦ IEC 60896-21/22
♦ DIN40742
♦ IEC61427
♦ YD/T1360
♦ EUROBAT guide, long life BS6290 part 4

2V Series Technical Data

1, Function Parameter
5, Environment Temperature
Norminal Voltage
2V
Discharge Temperature
-40-60ºC
Norminal Capacity(10 hours rate)
2500Ah
Charge Temperature
-15-50ºC
Numbers of Cells
1cell
Storage Temperature
-15-40ºC
2, Rated Capacity at 25ºC(77ºF)
6, Inner Resistance & Max. Discharge Current
10hr,1.80V/cell,20ºC/68ºF
2500Ah
Fully Charge Battery at 25ºC(77ºF)
0.21mΩ
5hr,1.75V/cell,20ºC/68ºF
2140Ah
Max. Discharge Current
3000A(5s)
3hr,1.75V/cell,20ºC/68ºF
1884Ah
Short Circuit Current
8300A
3, Capacity affected by Temperature(10 hour rate)
7, Self-discharge@25ºC(77ºF)
40ºC(104ºF)
102%
Capacity after 3 Month Storage
94%
25ºC(77ºF)
100%
Capacity after 6 Month Storage
88%
0ºC(32ºF)
90%
Capacity after 9 Month Storage
82%
-15ºC(5ºF)
70%
Capacity after 12 Month Storage
76%
4, Constant Voltage Charging at 25ºC(77ºF)

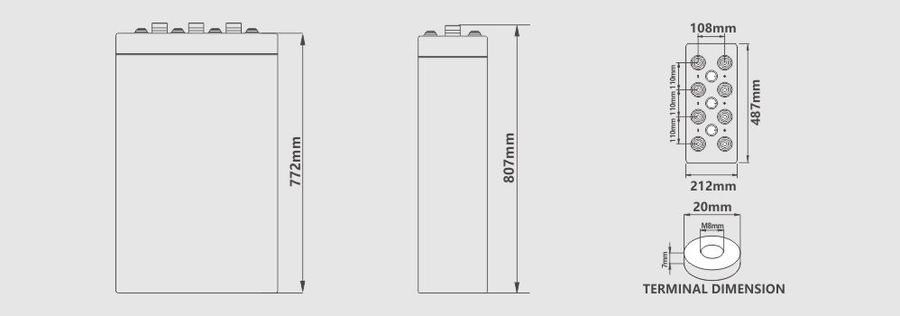

8, Dimension & Weight
Cycle Charge
2.40V~2.50V
Length
487mm
Max Charging Current
625A
Width
212mm
Temperature Compensation
-5mV/ºC
Height
772mm
Float Use
2.25-2.3V
Total Height
807mm
Temperature Compensation
-3mV/ºC
Reference Weight
185kgs

China Manufacturer Tubular 2V 2500ah Opzv Battery


♦ Our battery factory Founded in 2008 , 2million batteries annual production capacity
♦ Products including valve regulated lead acid battery , Gel battery , deep cycle battery, OPzV and OPzS battery
♦ Products are exported to more than 100countries
♦ Products are certified by CE, UL,Rohs
♦ Mature and very well respected AGM and GEL technologies for valve-regulated lead-acid batteries ranging from 2Ah to 3000Ah
