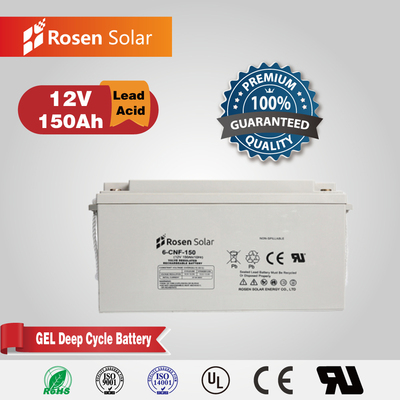

12V 150Ah Deep Cycle Battery
Model No.: RSG12-150Ah
Rechargeable: Chargeable
Dimension: 480*170*241/241mm
Weight: 45kgs
Warranty: 6 Years
Maintenance: Free
Terminal: Lead/Copper
Negative Plate: Negative Plate
Trademark: Rosen Solar/OEM/ODM
Design Life: 15 Years(Floating Charge)
Sealed Type: Sealed Valve Regulated
Positive Plate: Lead Dioxide
Material: High Pure Lead
Transport Package: Wooden Box/Carton Packing
Container Cover: ABS
Color: Gray/Black/Red
Application: 8507200000
Electrolyte: Fixed
Certification: Rubber
Battery portection: UL/Ce/RoHS/ISO09001/ISO14001/IEC60896/IEC61427
Cycle Life: 5000+ Times
Detail


A valve-regulated lead-acid battery (VRLA battery) sometimes called sealed lead-acid (SLA) or maintenance free battery.

There are three primary types of VRLA batteries, sealed VR wet cell, absorbent glass mat (AGM) and GEL cell. Gel cells add silica dust to the electrolyte, forming a thick putty-like GEL. These are sometimes referred to as "silicone batteries". AGM (absorbent glass mat) batteries feature fiberglass mesh between the battery plates which serves to contain the electrolyte. Both designs offer advantages and disadvantages compared to conventional batteries and sealed VR wet cells, as well as each other.

Due to their construction, the GEL cell and AGM types of VRLA can be mounted in any orientation, and do not require maintenance, which is called "Maintenance Free".   They are widely used in large portable electrical devices, off-grid power systems, hybrid storage systems, and similar roles.


12V 150AH.jpg

Key Features :
♦Rechargeable 12V 150Ah Gel Deep Cycle Battery
♦Gelled electrolyte made by mixing sulfuric acid with silica fume
♦The electrolyte is gel like ,immobile and does not leak ,enabling uniform reaction of each part of the plate .
♦High rate discharge performance due to tight assembly technology
♦Strong heat dissipation and wide operating temperature range
♦Avoid acid mist being separated out , environment friendliness
♦Efficient venting system release excessive gas automatically

12V Series GEL Battery Technical Data

1, Function Parameter
5, Environment Temperature
Norminal Voltage
12V
Discharge Temperature
-20-60ºC
Norminal Capacity(10 hours rate)
150Ah
Charge Temperature
-10-50ºC
Numbers of Cells
6cell
Storage Temperature
-20-60ºC
2, Rated Capacity at 25ºC(77ºF)
6, Inner Resistance & Max. Discharge Current
10hr,10.8V/cell,20ºC/68ºF
150Ah
Fully Charge Battery at 25ºC(77ºF)
3.5mΩ
3hr,10.8V/cell,20ºC/68ºF
115Ah
Max. Discharge Current
2250A(5s)
1hr,10.5V/cell,20ºC/68ºF
82.8Ah
Short Circuit Current
7500A
3, Capacity affected by Temperature(10 hour rate)
7, Self-discharge@25ºC(77ºF)
40ºC(104ºF)
103%
Capacity after 3 Month Storage
91%
25ºC(77ºF)
100%
Capacity after 6 Month Storage
82%
0ºC(32ºF)
85%
Capacity after 9 Month Storage
73%
-15ºC(5ºF)
65%
Capacity after 12 Month Storage
64%
4, Constant Voltage Charging at 25ºC(77ºF)
8, Dimension & Weight
Cycle Charge
14.4V~14.9V
Length
484mm
Maximum Charging Current
37.5A
Width
170mm
Temperature Compensation
-30mV/ºC
Height
241mm
Float Charge
13.6-13.8V
Total Height
241mm
Temperature Compensation
-20mV/ºC
Reference Weight
45kgs

Solar-Battery-12V-150ah-Gel-Storage-Battery.jpgSolar-Battery-12V-150ah-Gel-Storage-Battery (1).jpg


Applications :
♦Solar and wind energy storage system
♦EPS and UPS battery backup
♦Signal system , emergency lighting system , security system
♦Telecommunication Equipment
♦Power plant and transmission system
